S355 Grades

S355 Grade Steel

S355 GradesS355 is a non-alloy European standard (EN 10025-2) structural steel.
S355 grade steel is a medium tensile, low carbon manganese steel which is readily weldable and possesses good impact resistance (also in sub-zero temperatures).

This material is commonly supplied in the untreated or normalised condition and is available in several variations (denoted by additional letters and/or digits) which offer slight modifications of chemical composition and mechanical properties.

Machinability of this material is similar to that of mild steel.



Typical Applications

  • Construction
  • Bridges
  • Engineering
  • Yellow goods
  • Tanks
  • Rail
  • Energy

S355 Available In

  • S355 Structural Steel
    STRUCTURAL
  • S355 Steel Plates
    PLATES

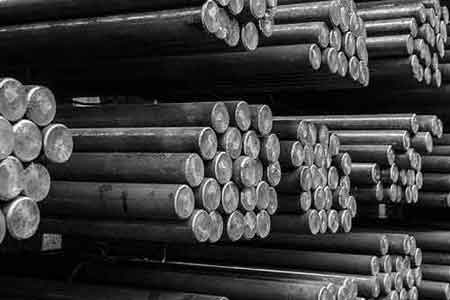

  • S355 Bars
    BARS

Mechanical Properties

EN Standard Designation  Thickness  C (%) Mn (%) P (%)  S (%) Si (%) Al (%) Cu (%) Cr (%) Ni (%) Nb (%) V (%) Ti (%) N (%) Ceq (%) Mo (%)
   EN 10027-1 EN 10027-2  (mm)
EN 10025-2  S355JR 1.0045 5-30 ≤0.24 ≤0.16 ≤0.035 ≤0.035 ≤0.55   ≤0.55           ≤0.012 ≤0.45
30-120                           ≤0.47
S355J0 1.0553 5-30 ≤0.20 ≤0.16 ≤0.030 ≤0.030 ≤0.55   ≤0.55           ≤0.012 ≤0.45
30-120 ≤0.22                         ≤0.47
S355J2+N 1.0577 5-30 ≤0.20 ≤0.16 ≤0.025 ≤0.025 ≤0.55   ≤0.55           - ≤0.45
30-120 ≤0.22                         ≤0.47
S355J2 1.0577 5-30 ≤0.20 ≤0.16 ≤0.025 ≤0.025 ≤0.55   ≤0.55           - ≤0.45
30-120 ≤0.22                         ≤0.47
S355K2+N 1.0596 5-30 ≤0.20 ≤0.16 ≤0.025 ≤0.025 ≤0.55   ≤0.55           - ≤0.45
30-120 ≤0.22                         ≤0.47
S255K2 1.0596 5-30 ≤0.20 ≤0.16 ≤0.025 ≤0.025 ≤0.55   ≤0.55           - ≤0.45
30-120 ≤0.22                         ≤0.47
EN 10025-3 S355N 1.0545 5-63 ≤0.20 0.90-1.65 ≤0.030 ≤0.025 ≤0.50 ≥0.020 ≤0.55 ≤0.30 ≤0.50 ≤0.050 ≤0.12 ≤0.050 ≤0.015 ≤0.43 ≤0.10
63-120                           ≤0.43
S355NL 1.0546 5-63 ≤0.18 0.90-1.65 ≤0.025 ≤0.020 ≤0.50 ≥0.020 ≤0.55 ≤0.30 ≤0.50 ≤0.050 ≤0.12 ≤0.050 ≤0.015 ≤0.43 ≤0.10
63-120                           ≤0.43
EN 10025-4 S355M 1.8823 5-40 ≤0.14 ≤1.60 ≤0.030 ≤0.025 ≤0.50 ≥0.020 ≤0.55 ≤0.30 ≤0.50 ≤0.050 ≤0.10 ≤0.050 ≤0.015 ≤0.39 ≤0.10
40-60                           ≤0.40
S355ML 1.8834 5-40 ≤0.14 ≤1.60 ≤0.025 ≤0.020 ≤0.50 ≥0.020 ≤0.55 ≤0.30 ≤0.50 ≤0.050 ≤0.10 ≤0.050 ≤0.015 ≤0.39 ≤0.10
40-50                           ≤0.40

Chemical Properties

EN Standard Designation  Thickness  C (%) Mn (%) P (%)  S (%) Si (%) Al (%) Cu (%) Cr (%) Ni (%) Nb (%) V (%) Ti (%) N (%) Ceq (%) Mo (%)
   EN 10027-1 EN 10027-2  (mm)
EN 10025-2  S355JR 1.0045 5-30 ≤0.24 ≤0.16 ≤0.035 ≤0.035 ≤0.55   ≤0.55           ≤0.012 ≤0.45
30-120                           ≤0.47
S355J0 1.0553 5-30 ≤0.20 ≤0.16 ≤0.030 ≤0.030 ≤0.55   ≤0.55           ≤0.012 ≤0.45
30-120 ≤0.22                         ≤0.47
S355J2+N 1.0577 5-30 ≤0.20 ≤0.16 ≤0.025 ≤0.025 ≤0.55   ≤0.55           - ≤0.45
30-120 ≤0.22                         ≤0.47
S355J2 1.0577 5-30 ≤0.20 ≤0.16 ≤0.025 ≤0.025 ≤0.55   ≤0.55           - ≤0.45
30-120 ≤0.22                         ≤0.47
S355K2+N 1.0596 5-30 ≤0.20 ≤0.16 ≤0.025 ≤0.025 ≤0.55   ≤0.55           - ≤0.45
30-120 ≤0.22                         ≤0.47
S255K2 1.0596 5-30 ≤0.20 ≤0.16 ≤0.025 ≤0.025 ≤0.55   ≤0.55           - ≤0.45
30-120 ≤0.22                         ≤0.47
EN 10025-3 S355N 1.0545 5-63 ≤0.20 0.90-1.65 ≤0.030 ≤0.025 ≤0.50 ≥0.020 ≤0.55 ≤0.30 ≤0.50 ≤0.050 ≤0.12 ≤0.050 ≤0.015 ≤0.43 ≤0.10
63-120                           ≤0.43
S355NL 1.0546 5-63 ≤0.18 0.90-1.65 ≤0.025 ≤0.020 ≤0.50 ≥0.020 ≤0.55 ≤0.30 ≤0.50 ≤0.050 ≤0.12 ≤0.050 ≤0.015 ≤0.43 ≤0.10
63-120                           ≤0.43
EN 10025-4 S355M 1.8823 5-40 ≤0.14 ≤1.60 ≤0.030 ≤0.025 ≤0.50 ≥0.020 ≤0.55 ≤0.30 ≤0.50 ≤0.050 ≤0.10 ≤0.050 ≤0.015 ≤0.39 ≤0.10
40-60                           ≤0.40
S355ML 1.8834 5-40 ≤0.14 ≤1.60 ≤0.025 ≤0.020 ≤0.50 ≥0.020 ≤0.55 ≤0.30 ≤0.50 ≤0.050 ≤0.10 ≤0.050 ≤0.015 ≤0.39 ≤0.10
40-50                           ≤0.40
